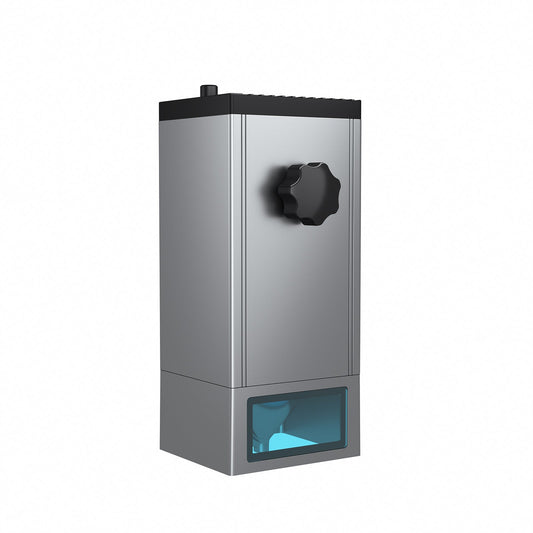

ATOMSTACK M150 33W Laser Module 6-diode Cores

ATOMSTACK M150 33W Laser Module 6-diode Cores

SKU:N/A

$799.99

✅Optical Output Power: 30-33W

✅Can be installed on 10W/20W/30W series machines

✅Supports Metal cutting and color engraving

PLUG

EU Plug
US Plug
UK Plug

Ship from

China

GENERAL RETURN POLICY

We want you to be happy with your purchase. If you are not completely satisfied, you can return the product to us and we will either repair/replace it, or refund to you. You are eligible for a REFUND or EXCHANGE which are subject to the below terms:

All Items are eligible for return and would be processed if conditions are met.

You are always required to ship back the items by following the shipping instruction:

Please contact our customer services at official@atomstack.com for return or exchange approval, and the product-related return address and a RETURN AND EXCHANGE POLICY (RMA) form. Items returned to our warehouse without a valid RMA form will not be processed.

Conditions

If you receive a product that is defected, malfunctioning, or sent with wrong item, your return or exchange will be free of charge.

If you would like to return or exchange your purchased item for your own reason, you will be responsible for the costs of the shipping fee to and from our warehouses.

Transaction fee of PayPal, which is 4.4% of the total amount of your original order. PayPal may change its transaction fee rate, we will use the rate when your order was placed.

REFUND POLICY

In order to be eligible for a refund, you have to return the product within 30 days of your purchased item(s) was delivered to you. If the product is damaged in any way, or you have initiated the return after 30 days have passed, you will not be eligible for a refund.

In order for the product to be eligible for a Refund, make sure these conditions are met:

Product must be returned in its original packaging

Product must have the receipt or proof of purchase

After we receive your product, our team of professionals will inspect it and process your refund. The money will be refunded to the Original Payment Method you’ve used during the purchase within 2 - 7 business days after returning has been processed.

EXCHANGE POLICY

Products can be exchanged for a different product in the same product line (laser engraver, accessory), provided that such product is available. Customers are allowed to exchange for item within 30 days. Exchanges exceeding 30 days will not be processed.

In order to be eligible for exchanges make sure that these following conditions are met:

Product must be returned in its original packaging

Product must have the receipt or proof of purchase

You are required to ship back the product for the item to be inspected and replaced.

You exchanged product will be processed Once items are received and conditions confirmed.

If you select an item with a higher value compared to the item you are exchanging, we will ask you to pay the price difference. In case the value is lower, we will refund you with the difference.

You are given the rights to exchange the item, Two times. Provided that all conditions in Exchange Policy are met.

Note: Refurbished products aren't allowed to be returned and exchanged.

Standard One Year Warranty For Laser Machines, And 6 Months for Laser Modules.

    Atomstack warrants a product to be free from defects in workmanship and materials, under normal indoor use and
    conditions, for a period of one year for the original invoice date.
    This warranty is non-transferable and proof of purchase from us or an authorized dealer is required for warranty service.

What Does This Warranty Cover?
We warrant that the Products are free from defects in materials and workmanship under normal use and use in accordance with the respective Product user manual, during the Warranty Period(defined below). Please refer to the Instructions inside each package for a description of proper use and care of the unit.

We agree, at its option during the warrantty period to furnish a refurbished or replacement product of equal value in exchange without charge(except for a fee for handing, packing, and insurance which will be incurred by the customer). Such replacement is subject to verification of the defect or malfunction and proof of purchase as confirmed by showing the model number on the original dated sales receipt.

What Does This Warranty Not Cover?
This Warranty does not cover damages directly or indirectly arising or resulting from or during:

    Damage resulting from misuse, abuse, negligence, accidents, or shipping damage.
    Any condition resulting from incorrect or inadequate maintenance or care.
    Use with another product or other damage or loss suffered by the use or combination of any other item.
    Damages incurred during improper or inadequate maintenance.
    Repairs by an unauthorized service technician.

Open Box & Clearance Items

    Open Box items are products that have damaged packaging or are otherwise not suitable to be sold as new. All items are tested to be working by a member of our team.
    Open Box items come with a 6-month warranty instead of the standard 12 months warranty and are not eligible for any warranty extension offered to new products. We will not accept returns of Open Box items due to cosmetic damage or other non-performance-related issues. All sales of Open Box items are final and not eligible for a return or refund.

lf for some reason the item is defective on arrival, please contact official@atomstack.com so we can arrange a replacement.

Podíl

Rychlé dodání, sklad v zámoří
Kontaktujte nás 24 hodin denně, 7 dní v týdnu
Jednoduše jej do 30 dnů vraťte na výměnu

Guarantee safe & secure checkout

Description:

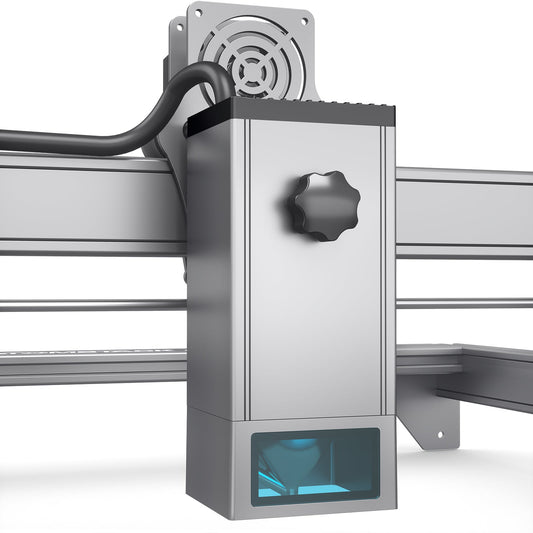

a. High adaptability: The M150 laser module can be installed on most engraving machine model of Atomstack 10W series (A10 Pro / S10 Pro / X7 Pro), 20W series（A20 / A20 Pro / S20 / X20 Pro）, 33W series (A30 Pro / X30 Pro), just use the corresponding adapter board, and it can be used without any additional settings.（Not suitable for 5W and P7/P9 series machines）

If you own other brands of engravers, such as Ortur, NEJE, Two-Trees, etc., you can also install our Atomstack M150 laser module, which comes with a free adapter in the box.

b. Powerful power: M150 adopts 6 laser chip coupling after compressed spot. Compared with 20W module products on the market, its powerful power can increase the cutting depth of wood board by 25%, increase the cutting speed by 50% with the same parameters, and increase the clear engraving speed by 65%. Greatly improve work efficiency

c. Non-blocking air outlet and pollution-free design: Non-blocking air outlet and pollution-free design：The M150 adopts the patented double air-gathering hood design, the dual air ducts have different functions, and the scientific air duct is used to clean up the debris and oil at the air outlet, so that the laser can be kept clean at any time and the service life can be extended by 50%.

d. Metal cutting and color engraving: Thanks to the powerful optical power of the M150, all users can try more interesting new jobs. Such as cutting 0.05mm stainless steel sheet or color engraving with more than 360 different colors on stainless steel sheet.

Higher laser power, faster engraving speed! NEW ATOMSTACK M150 33W six Ultrafine Compression Spot Laser Module: Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser. Upgrade high quality fixed focus laser, no need to focus. The engraving speed is 150% higher than other 20W lasers.

Laser module Specification:

Brand	Atomstack
Model	M150
Optical Output Power	30-33W
Product Material	Aluminum 6061 Anode
Housing Size	1406560mm
Circuit Board	V/PWM Modulation Board
Wire Rod	22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens	φ6/glass
Fan	24V
Laser Beam Mode	Spot
Working Mode	Pulse Work
Lightspot Size	0.08*0.1mm
Working Time	10000H
Working Temperature	0℃~70℃
Storage Temperature	-40℃ ~ 85℃
Sintering Temperature	2400 ~ 3000℃
Product Net Weight	815g

Items	Symbol	Min	Typ	Max	Unit	Condition
Optical Output Power	Po		9.5	10	W	24V Power
Working Current	Iop	/	3.2	4.6	A
Operating Voltage	Vop	/	24	/	V
Laser Wavelength	λp		455	460	nm

Features:

a. It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.

b. Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.

c. Made of aluminum, strong and durable.

d. Upgraded high quality fixed-focus laser, no need to focus.

e. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.

f. Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife.

g. Cutable material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.

h. 0.08*0.1mm Six compression spot light coupling technology makes engraving more powerful and precise .

i. Engraving speed is 200% higher than other 20W lasers.

j. High energy can cut 15mm thickness plates at one time.

k. The laser sintering temperature is 3000degrees, the effect of engraving metal is better.

l. The laser has a built-in horizontal gyroscope anti-tip protection device, and it stops working when the tilt angle is 20°.

m. The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser energy attenuation.

n. The transfer circuit board is compatible with 95% of laser engraving machines on the market，Including Atomstack, ortur, Neje, twotree, etc.

CAUTIONS:

a. The laser light emitted by the laser module is likely to injure persons'eye, so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working.

b. Laser module needs an appropriate laser driver(PCB). When the laser module connects with power supply, please set the output voltage to zero. The adjustment of the current should be slowly increased or decrease to avoid damaging the device.

c. Keep the device working or storing in a dry environment. The anti-dust grade is over one million, in order to prevent dust inside the lens to affect the laser dot shape.

d. Working at high temperatures will increase the threshold current, reduce conversion efficiency and speed up the aging of the device.

e. When output power is higher than it's specific parameter of operation, it will accelerate the aging of the device.

f. When the operation temperature of the laser diode is over 70degree, please do well heat dissipation of it.

g. This laser module is an electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it.

Package Included:

1 x	M150 Laser Module
1 x	Compatible Plate
1 x	Fixed Focus Plate
1x	Connection Line
1 x	Wrench
6 x	Screws
1 x	Power Supply
