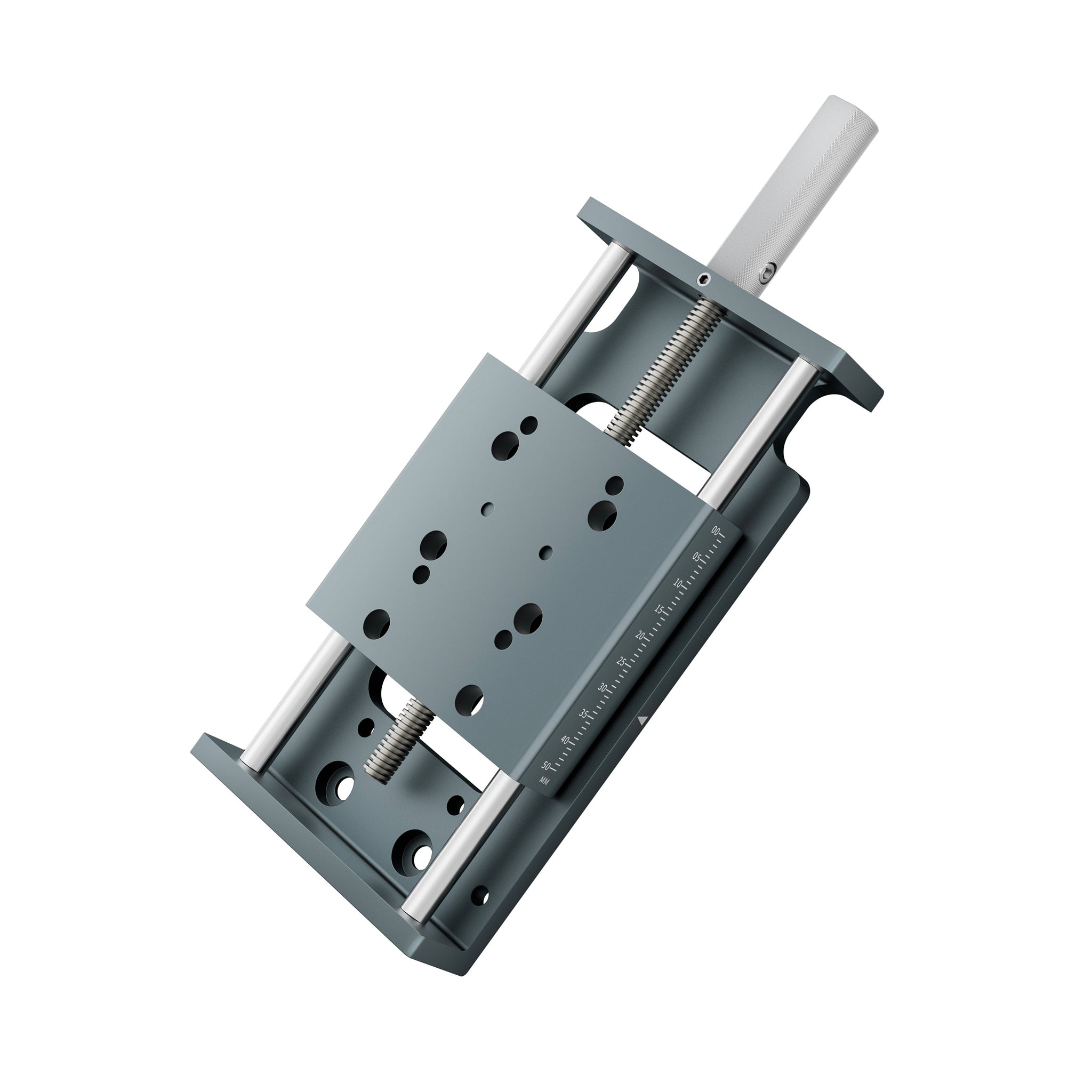

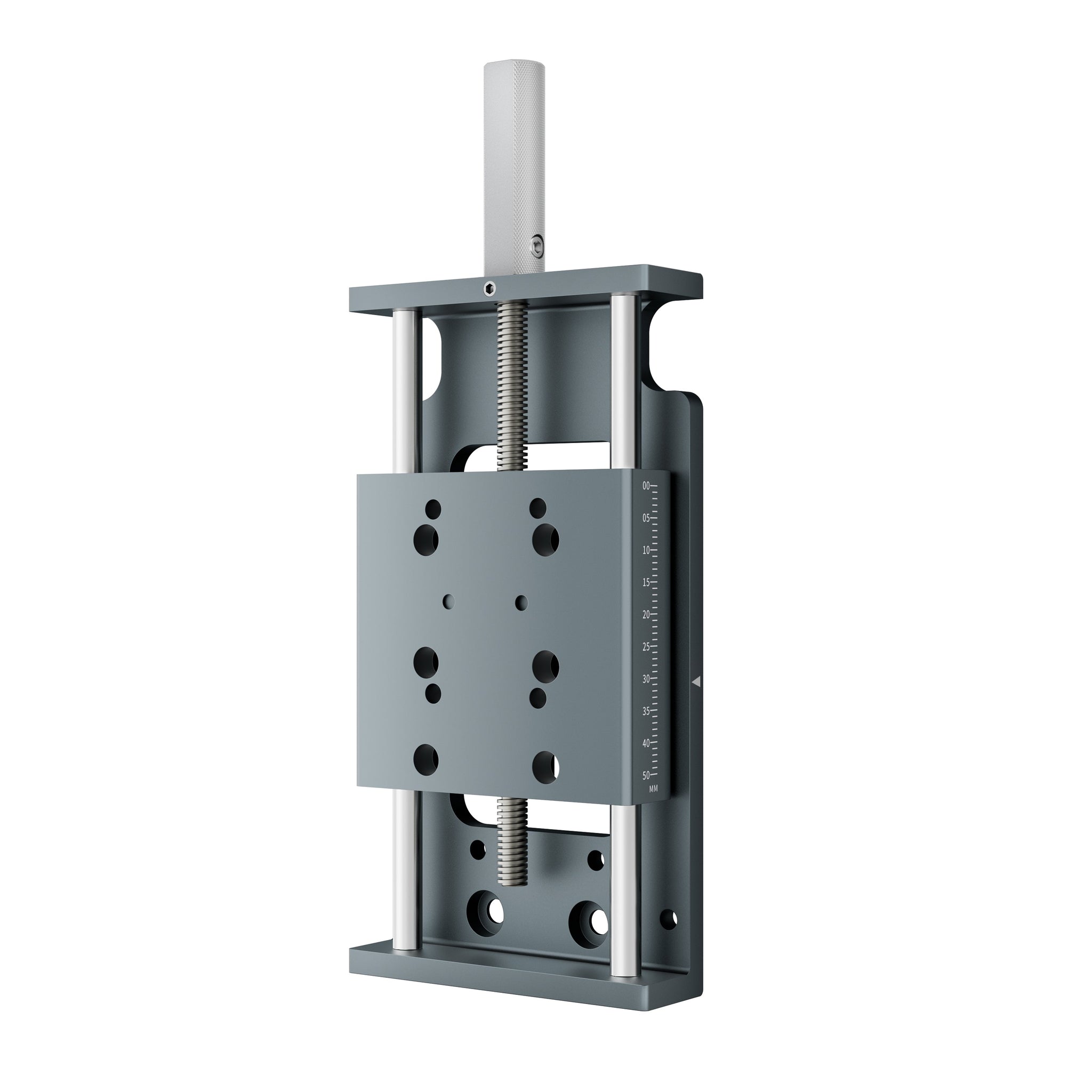

AtomStack Maker L1 Z-axis Adjuster for Laser Module Height Adjustment

Sale price$39.99 USD Regular price$59.99 USD
Save $20.00
Ship From:USA
Quantity:
Ships in 1 Business Day
12-month Warranty
Get 2% of Your Order Back
30-day Return Money
PayPal Visa Mastercard American Express Discover Diners Club Bancontact iDEAL Shop Pay Apple Pay Meta Pay Elo JCB Union Pay Google Pay Klarna

Description:

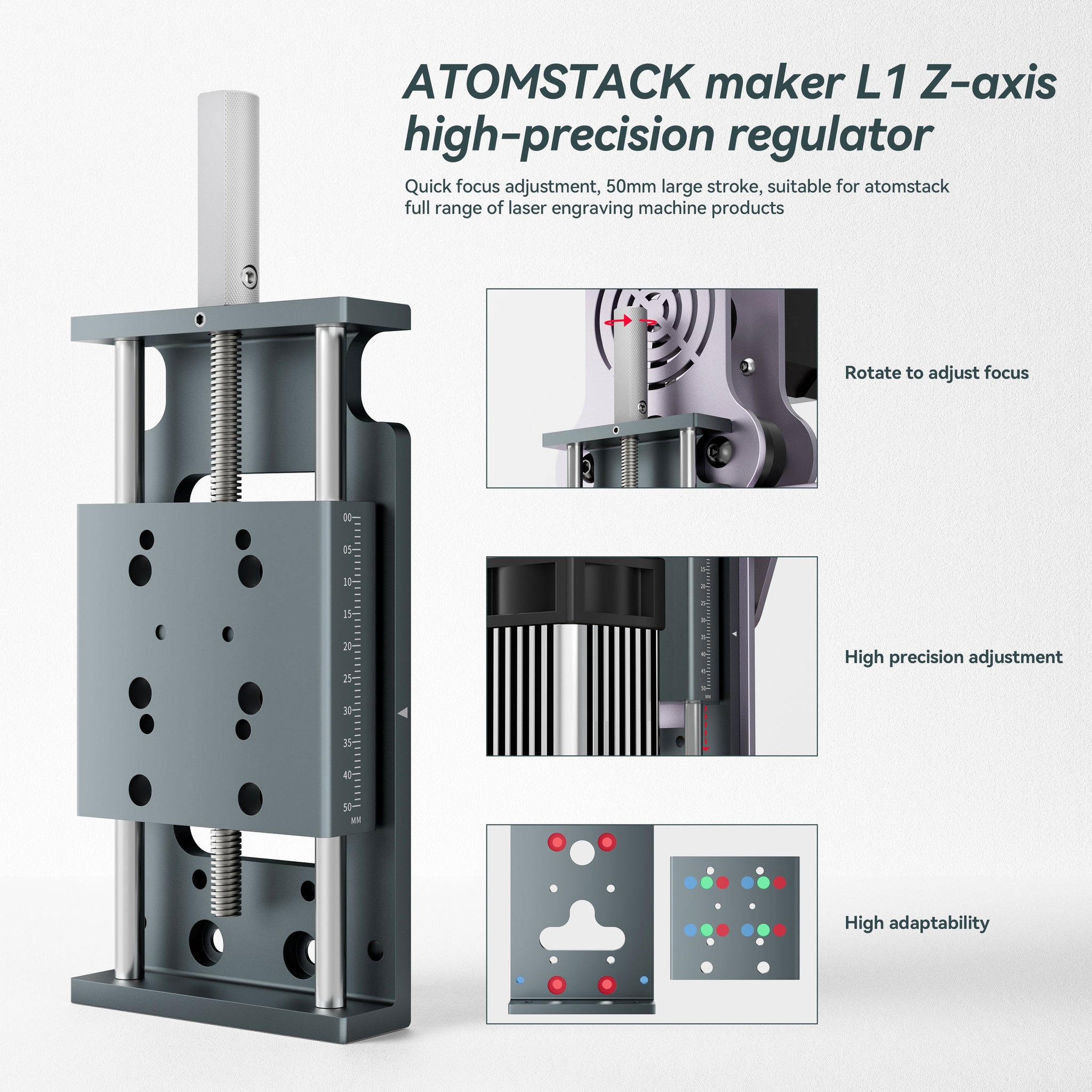

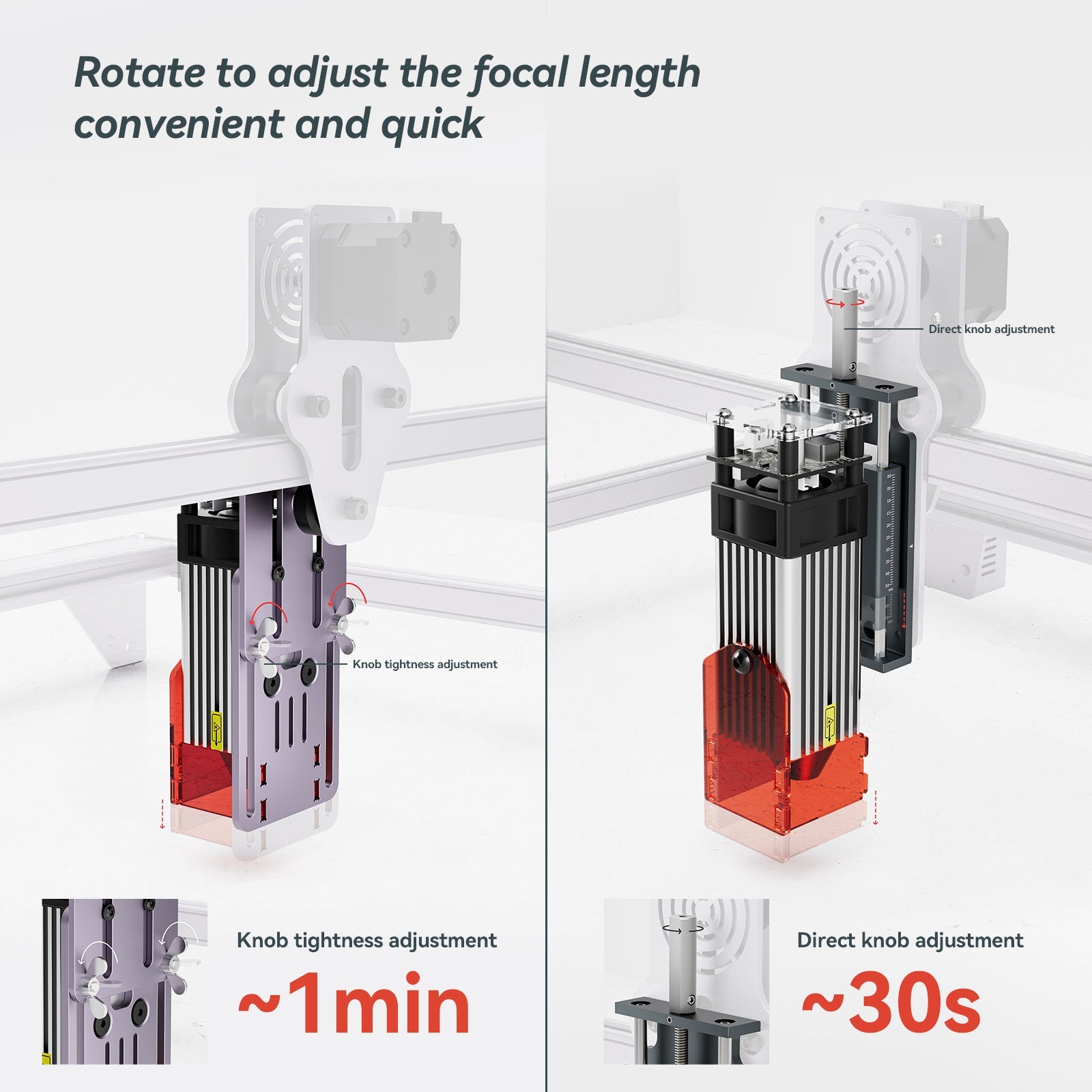

1. Precise focus adjustment by rotating the button: AtomStack Maker L1 Z-axis sliding lift mechanism for AtomStack laser engraver models.

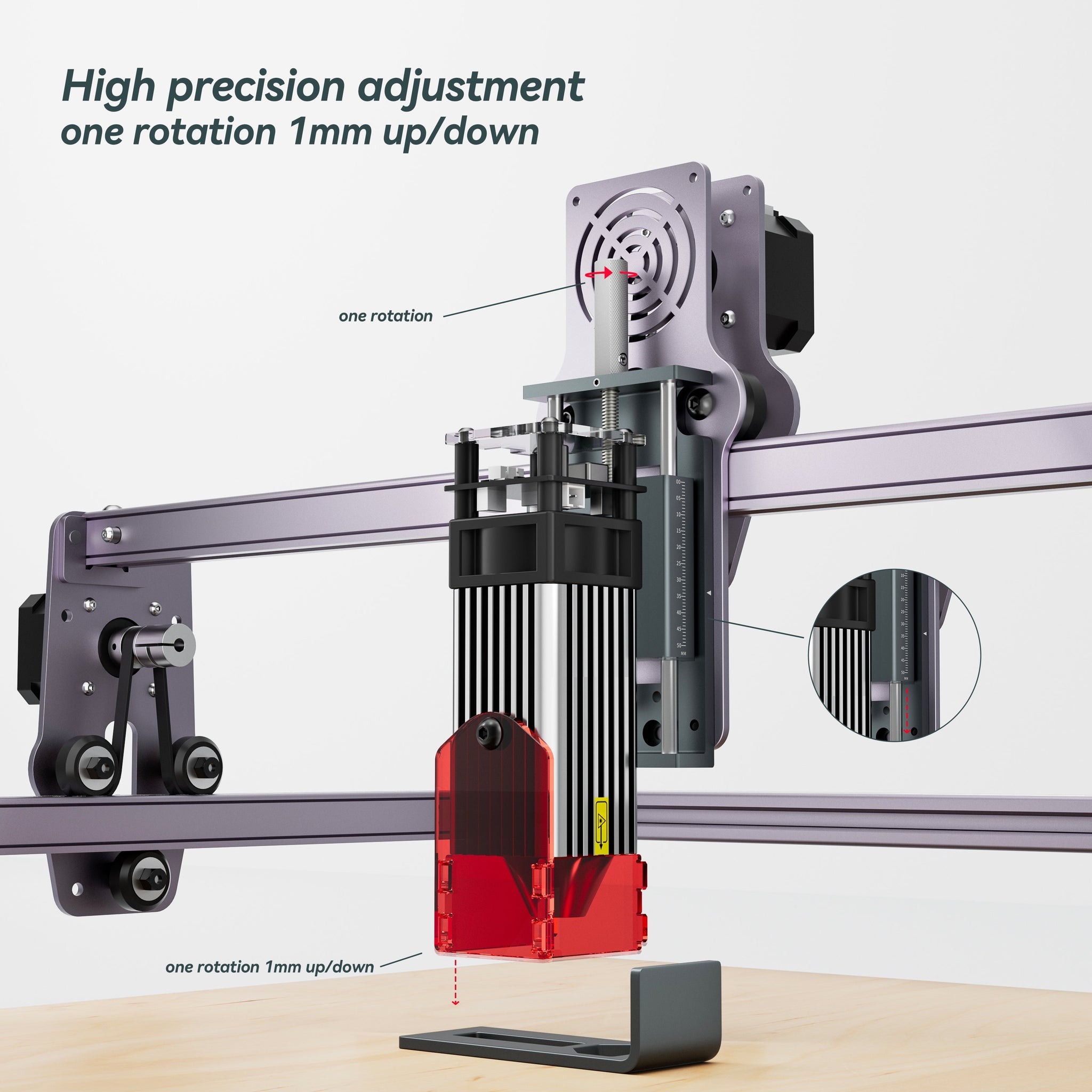

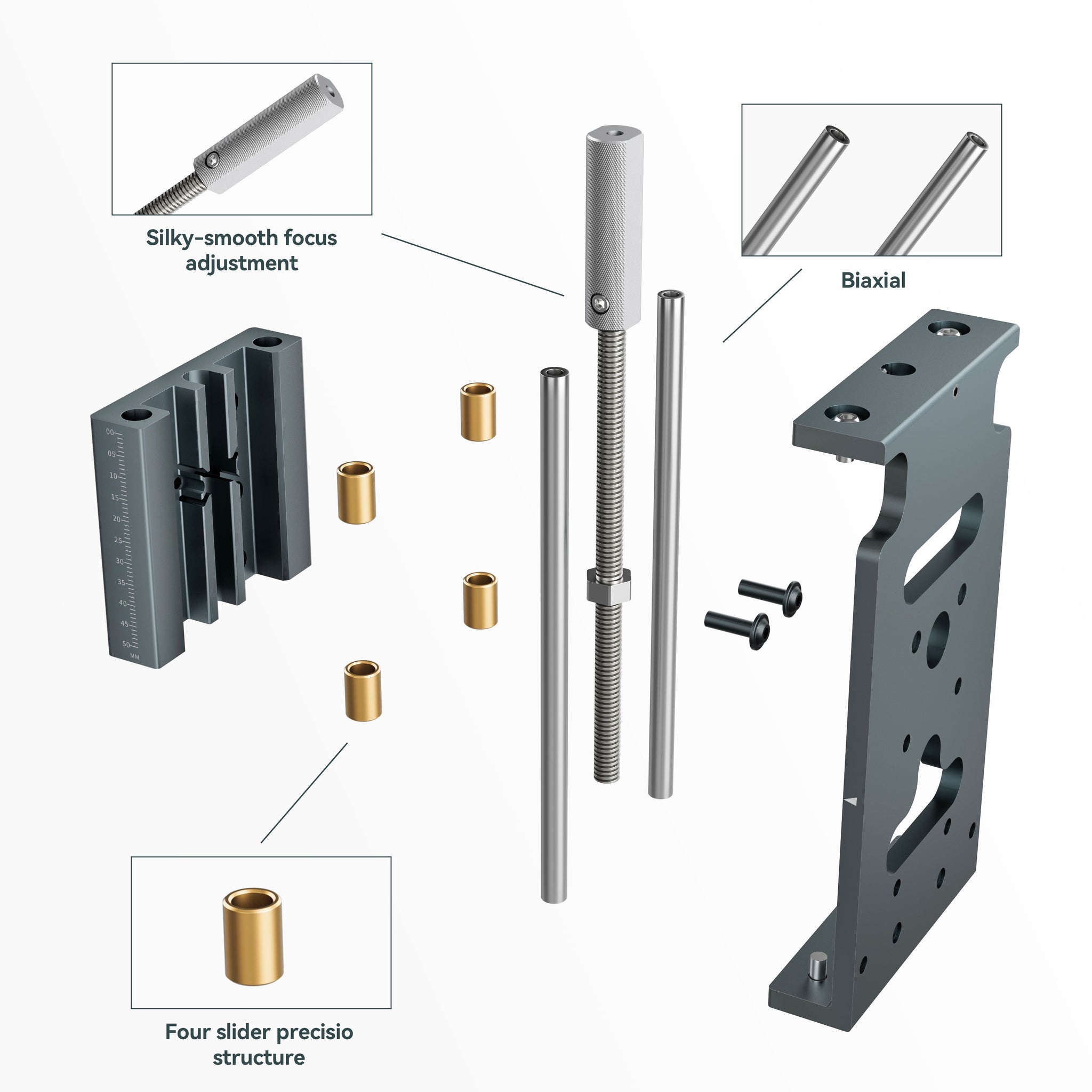

2. Precision structure: double optical axis, four slider precision structure, precise control of height, every rotation, the Z axis will rise or fall 1mm.

3. The AtomStack L1 Z-axis adjuster can be adapted to the AtomStack laser engraving machine range, with a height adjustment of 50 mm.

4. Easy to operate: 35*Φ10mm large size knob handle, easy to rotate.

5. Lightweight: 150*60*17mm slim size, installed in the machine with a stable center of gravity, will not shake and will not reduce the operating speed.

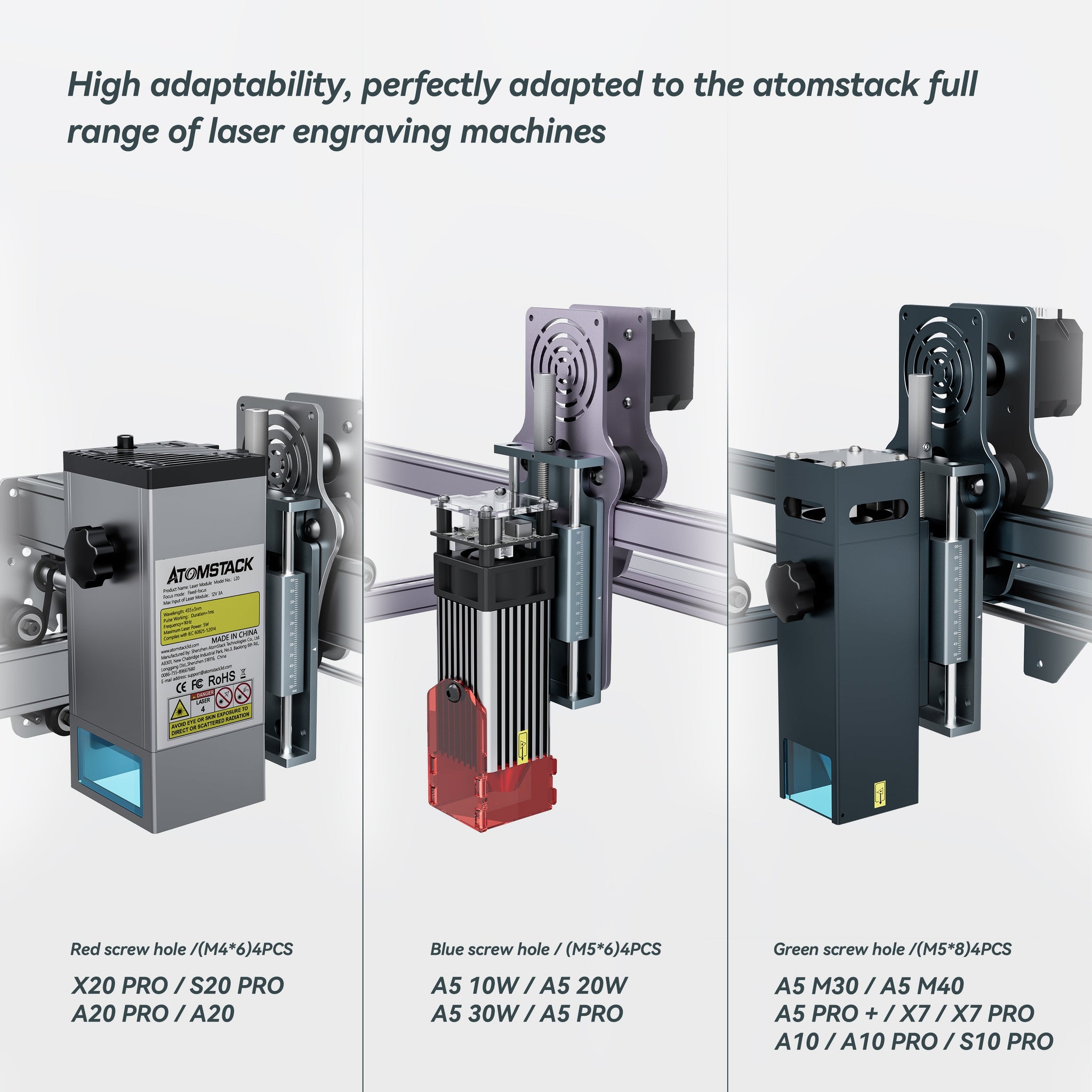

Compatible with the following models:

A30 Pro, S30 Pro, X30 Pro

A20 Pro, S20 Pro, X20 Pro

A10 Pro, S10 Pro, X7 Pro



A5 Series

Note: P9 M50, P9 M40, P7 M40, P7 M30 are not compatible



Specification:



Brand
Atomstack Maker

Model

L1

Material

Metal

Product Size

150*60*17mm

Slide stroke

50mm

Adaptable Laser Size

33mm, 40mm, 51mm and 60mm

Working Mode

Manual adjustment
